AWS Service - S3

S3:

• Buckets

  • Amazon S3 allows people to store objects (files) in “buckets” (directories)

  • Buckets must have a globally unique name (across all regions all accounts)

  • Buckets are defined at the region level

  • Note: S3 looks like a global service but buckets are created in a region

  • Naming convention

    • No uppercase, No underscore

    • 3-63 characters long

    • Not an IP

    • Must start with lowercase letter or number

    • Must NOT start with the prefix xn--

    • Must NOT end with the suffix -s3alias

    • Doc link - Naming convention

• Objects

  • Objects (files) have a Key

  • The key is the full path:

    • s3://my-bucket/my_file.txt

    • s3://my-bucket/my_folder1/another_folder/my_file.txt

  • The key is composed of prefix + object name

    • s3://my-bucket/my_folder1/another_folder/my_file.txt

    • Here:

      • Bucket is my-bucket

      • Prefix is my_folder1/another_folder

      • Object is my_file.txt

  • There’s no concept of “directories” within buckets

  • Just keys with very long names that contain slashes (“/”)

  • Object values are the content of the body:

    • Max object Size is 5TB

    • If uploading more than 5GB, must use “multi-part upload”

  • Metadata (list of text key / value pairs - system or user metadata)

  • Tags (Unicode key / value pair - up to 10) - useful for security / lifecycle

  • Version ID (if versioning is enabled)

• Security

  • User-Based

    • Through IAM policies

      • which API calls should be allowed for a specific user from IAM

  • Resource-Based

    • Bucket Policies - bucket wide rules from the S3 console - allows cross account

    • Object Access Control List (ACL) - finer grain - can be disabled

    • Bucket Access Control List (ACL) - less common - can be disabled

  • Encryption

    • encrypt objects in Amazon S3 using encryption keys

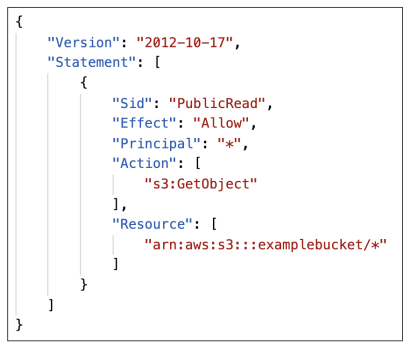

• S3 Bucket Policies

  • JSON based policies - looks similar to IAM policies

  • Usecase:

    • Grant public access to the bucket

    • Force objects to be encrypted at upload

    • Grant access to another account (Cross Account)

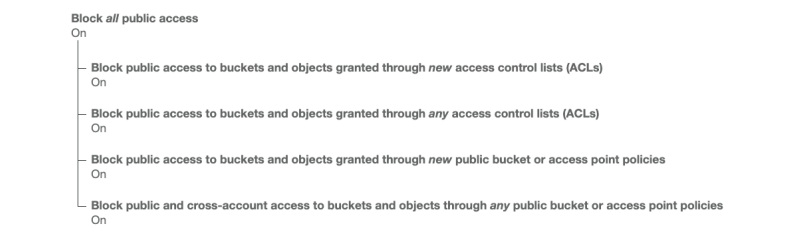

• Bucket settings for Block Public Access

• Static Website Hosting

  • S3 can host static websites and have them accessible on the Internet

  • The website URL will be either of the below depending on the region

    • http://bucket-name.s3-website-aws-region.amazonaws.com

    • http://bucket-name.s3-website.aws-region.amazonaws.com

    • the only diff is website- and website. in the above two pattern

• Versioning

  • You can version your files in Amazon S3

  • It is enabled at the bucket level

  • Same key overwrite will change the “version”: 1, 2, 3, etc

  • It is best practice to version your buckets

    • Protect against unintended deletes (ability to restore a version)

    • Roll back to previous version

  • Note:

    • Any file that is not versioned prior to enabling versioning will have version null

    • Suspending versioning does not delete the previous versions

• Replication

  • Must enable Versioning in source and destination buckets

  • CRR - Cross-Region Replication

  • SRR - Same-Region Replication

  • Buckets can be in different AWS accounts

  • Copying is asynchronous

  • Must give proper IAM permissions to S3

  • Usecase:

    • CRR - compliance, lower latency access, replication across account

    • SRR - log aggregation, live replication between envs

  • After you enable Replication, only new objects are replicated

  • Optionally, you can replicate existing objects using S3 Batch Replication

    • Replicates existing objects and objects that failed replication

  • For Delete operations

    • We could replicate delete markers from source to target (optional setting)

    • Deletions with a version ID are not replicated (to avoid malicious deletes)

  • There is no “chaining” of replication

    • If bucket 1 has replication into bucket 2, which has replication into bucket 3

    • Then objects created in bucket 1 are not replicated to bucket 3

• Durability and Availability

  • Durability:

    • High durability (99.999999999%, 11 9’s) of objects across multiple AZ

    • If you store 10,000,000 objects with Amazon S3, you can on average expect to incur a loss of a single object once every 10,000 years

    • Same for all storage classes

  • Availability:

    • Measures how readily available a service is

    • Varies depending on storage class

    • Example: S3 standard has 99.99% availability = not available 53 minutes a year

• Storage Classes

  • Amazon S3 Standard - General Purpose

  • Amazon S3 Standard-Infrequent Access (IA)

  • Amazon S3 One Zone-Infrequent Access

  • Amazon S3 Glacier Instant Retrieval

  • Amazon S3 Glacier Flexible Retrieval

  • Amazon S3 Glacier Deep Archive

  • Amazon S3 Intelligent Tiering

• S3 Standard - General Purpose

  • 99.99% Availability

  • Used for frequently accessed data

  • Low latency and high throughput

  • Sustain 2 concurrent facility failures

  • Use Cases: Big Data analytics, mobile & gaming applications, content distribution

• S3 Storage Classes - Infrequent Access

  • For data that is less frequently accessed, but requires rapid access when needed

  • Lower cost than S3 Standard

  • Amazon S3 Standard-Infrequent Access (S3 Standard-IA)

    • 99.9% Availability

    • Use cases: Disaster Recovery, backups

  • Amazon S3 One Zone-Infrequent Access (S3 One Zone-IA)

    • High durability (99.999999999%) in a single AZ; data lost when AZ is destroyed

    • 99.5% Availability

    • Use Cases: Storing secondary backup copies of on-premises data, or data you can recreate

• S3 Glacier Storage Classes

  • Low-cost object storage meant for archiving / backup

  • Pricing: price for storage + object retrieval cost

  • Amazon S3 Glacier Instant Retrieval

    • Millisecond retrieval, great for data accessed once a quarter

    • Minimum storage duration of 90 days

  • Amazon S3 Glacier Flexible Retrieval

    • Expedited (1 to 5 minutes), Standard (3 to 5 hours), Bulk (5 to 12 hours) - free

    • Minimum storage duration of 90 days

  • Amazon S3 Glacier Deep Archive - for long term storage

    • Standard (12 hours), Bulk (48 hours)

    • Minimum storage duration of 180 days

• S3 Intelligent-Tiering

  • Moves objects automatically between Access Tiers based on usage

  • Small monthly monitoring and auto-tiering fee

  • There are no retrieval charges in S3 Intelligent-Tiering

  • Frequent Access tier (automatic): default tier

  • Infrequent Access tier (automatic): objects not accessed for 30 days

  • Archive Instant Access tier (automatic): objects not accessed for 90 days

  • Archive Access tier (optional): configurable from 90 days to 700+ days

  • Deep Archive Access tier (optional): config. from 180 days to 700+ days

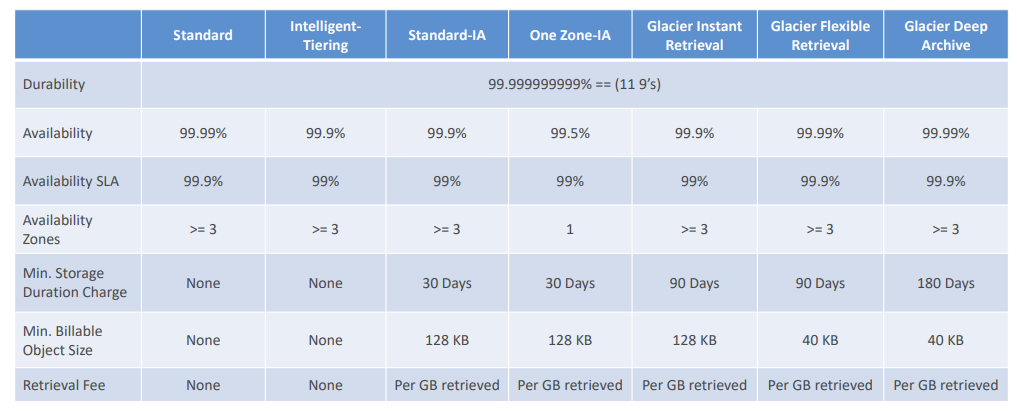

• S3 Storage Classes Comparison

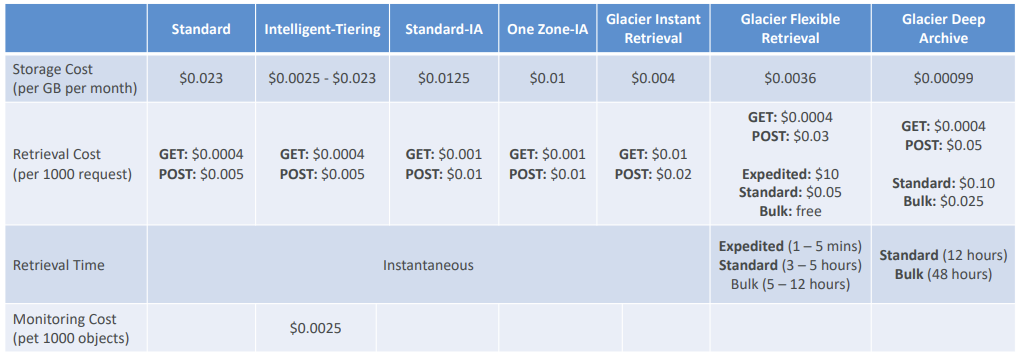

• S3 Storage Classes - Price Comparison

• Moving between Storage Classes

  • You can transition objects between storage classes

  • For infrequently accessed object, move them to Standard IA

  • For archive objects that you don’t need fast access to, move them to Glacier or Glacier Deep Archive

  • Moving objects can be automated using a Lifecycle Rules

• Lifecycle Rules

  • Transition Actions

    • Configure objects to transition to another storage class

    • Move objects to Standard IA class 60 days after creation

    • Move to Glacier for archiving after 6 months

  • Expiration actions

    • Configure objects to delete after some time

    • Access log files can be set to delete after a 365 days

    • Can be used to delete old versions of files (if versioning is enabled)

    • Can be used to delete incomplete Multi-Part uploads

  • Rules can be created for a certain prefix, certain objects Tags

• Storage Class Analysis

  • Help you decide when to transition objects to the right storage class

  • Recommendations for Standard and Standard IA

    • Does not work for One-Zone IA or Glacier

  • Report is updated daily

  • 24 to 48 hours to start seeing data analysis

• Requester Pays

  • In general, bucket owners pay for all Amazon S3 storage and data transfer costs associated with their bucket

  • With Requester Pays buckets, the requester instead of the bucket owner pays the cost of the request and the data download from the bucket

  • Helpful when you want to share large datasets with other accounts

  • The requester must be authenticated in AWS (cannot be anonymous)

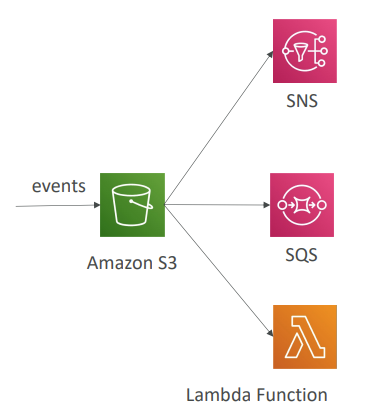

• Event Notifications

  • Based on S3 events downstream services could be triggered

  • S3:ObjectCreated, S3:ObjectRemoved, S3:ObjectRestore, S3:Replication

  • Can create as many “S3 events” as desired

  • S3 event notifications typically deliver events in seconds but can sometimes take a minute or longer

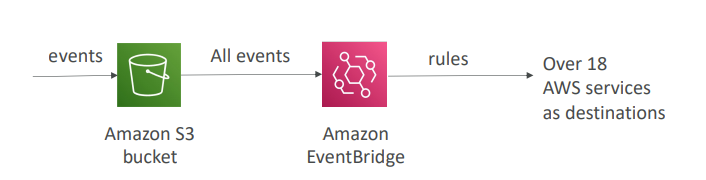

• S3 Event Notifications with Amazon EventBridge

  • Advanced filtering options with JSON rules

  • Multiple Destinations - Lambda, SNS, Step function, etc

  • EventBridge Capabilities - Archive, Replay Events, Reliable delivery

• Baseline Performance

  • Amazon S3 automatically scales to high request rates, latency 100-200 ms

  • We could achieve at least 3,500 PUT/COPY/POST/DELETE or 5,500 GET/HEAD requests per second per prefix in a bucket

  • There are no limits to the number of prefixes in a bucket

  • Tip: Spreading reads across prefix evenly could give higher reads per second

    • Ex: Prefix1 ; Prefix 2

    • So we basically get 2 × 5500 = 11,000 api per second indirectly by abusing the fact that there are no limits to no of prefix and per prefix we could go as high as 5,500 per sec

• S3 Performance

  • Multi-Part upload

    • Recommended for files > 100MB, must use for files > 5GB

    • Can help parallelize uploads (speed up transfers)

  • S3 Transfer Acceleration

    • Increase transfer speed by transferring file to an AWS edge location which will forward the data to the S3 bucket in the target region

    • Compatible with multi-part upload

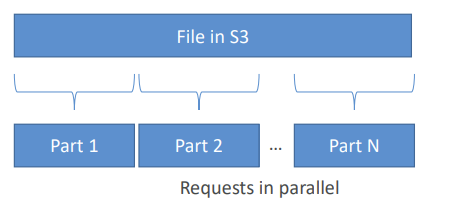

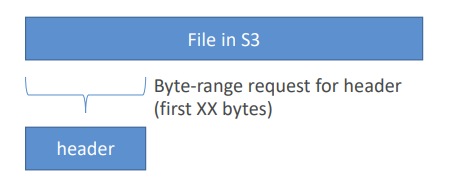

• S3 Byte-Range Fetches

  • Parallelize GETs by requesting specific byte ranges

  • Better resilience in case of failures

  • Can be used to speed up downloads

• Can be used to retrieve only partial data (for example the head of a file)

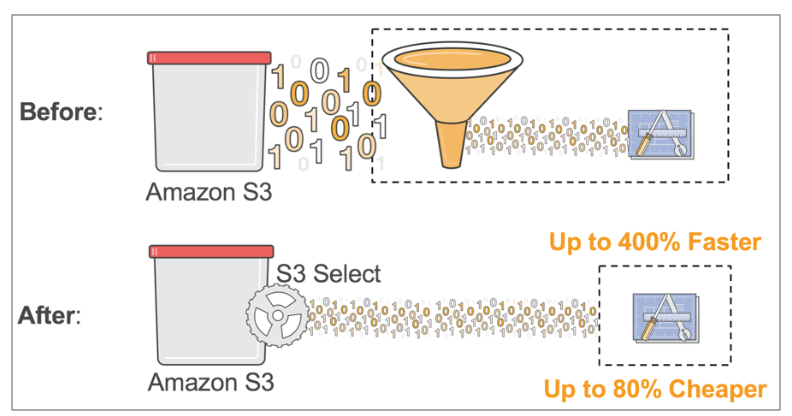

• S3 Select & Glacier Select

  • Retrieve less data using SQL by performing server-side filtering

  • Can filter by rows & columns (simple SQL statements)

  • Less network transfer, less CPU cost client-side

• S3 Batch Operations

  • Perform bulk operations on existing S3 objects with a single request, example:

    • Modify object metadata and properties

    • Copy objects between S3 buckets

    • Encrypt un-encrypted objects

    • Modify ACLs, tags

    • Restore objects from S3 Glacier

    • Invoke Lambda function to perform custom action on each object

  • A job consists of a list of objects, the action to perform, and optional parameters

  • S3 Batch Operations manages retries, tracks progress, sends completion notifications, generate reports

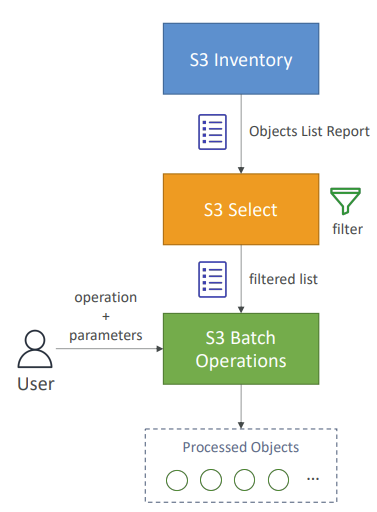

  • You can use S3 Inventory to get object list and use S3 Select to filter your objects

• S3 Object Encryption

  • Server-Side Encryption with Amazon S3-Managed Keys (SSE-S3)

  • Server-Side Encryption with KMS Keys stored in AWS KMS (SSE-KMS)

  • Server-Side Encryption with Customer-Provided Keys (SSE-C)

  • Client-Side Encryption

• S3 Encryption - SSE -S3

  • Encryption using keys handled, managed, and owned by AWS

  • Object is encrypted server-side

  • Encryption type is AES-256

  • Must set header "x-amz-server-side-encryption": "AES256”

  • Enabled by default for new buckets & new objects

• S3 Encryption - SSE-KMS

  • Encryption using keys handled and managed by AWS KMS (Key Management Service)

  • Better user control and audit key usage tracking using CloudTrail

  • Object is encrypted server side

  • Must set header "x-amz-server-side-encryption": "aws:kms"

  • Beware there is quota limit to KMS API rates

• Amazon S3 Encryption - SSE-C

  • Server-Side Encryption using keys fully managed by the customer outside of AWS

  • Amazon S3 does not store the encryption key you provide

  • HTTPS must be used

  • Encryption key must provided in HTTP headers, for every HTTP request made

• Amazon S3 Encryption - Client-Side Encryption

  • Use client libraries such as Amazon S3 Client-Side Encryption Library

  • Clients must encrypt data themselves before sending to Amazon S3

  • Clients must decrypt data themselves when retrieving from Amazon S3

  • Customer fully manages the keys and encryption cycle

• Encryption in transit (SSL/TLS)

  • Encryption in flight is also called SSL/TLS

  • Amazon S3 exposes two endpoints:

    • HTTP Endpoint - non encrypted

    • HTTPS Endpoint - encryption in flight

  • HTTPS is mandatory for SSE-C

  • Most clients would use the HTTPS endpoint by default

  • We could force HTTPS by adding those condition in bucket policy

• CORS

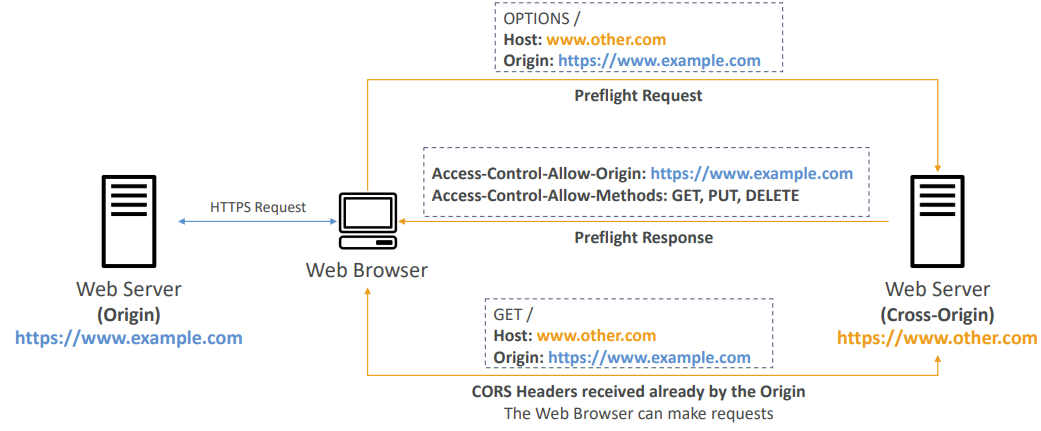

  • CORS - Cross-Origin Resource Sharing

  • Origin = scheme (protocol) + host (domain) + port

    • ex: https://www.example.com

    • Protocol - HTTPS

    • Domain - www.example.com

    • Port - HTTPS (443) ; HTTP (80)

  • Web Browser based mechanism to allow requests to other origins while visiting the main origin

  • Same origin: http://example.com/page1 and http://example.com/page2

  • Different origins: http://www.example.com and http://other.example.com

  • The requests won’t be fulfilled unless the other origin allows for the requests, using CORS Headers (example: Access-Control-Allow-Origin)

  • If a client makes a cross-origin request on our S3 bucket, we need to enable the correct CORS headers

• S3 - MFA Delete

  • MFA (Multi-Factor Authentication) – force users to generate a code on a device (usually a mobile phone or hardware) before doing important operations on S3

  • MFA will be required to:

    • Permanently delete an object version

    • Suspend Versioning on the bucket

  • MFA won’t be required to:

    • Enable Versioning

    • List deleted versions

  • To use MFA Delete, Versioning must be enabled on the bucke

  • Only the bucket owner (root account) can enable/disable MFA Delete

• S3 Access Logs

  • For audit purpose, you may want to log all access to S3 buckets

  • Any request made to S3, from any account, authorized or denied, will be logged into another S3 bucket

  • That data can be analyzed using data analysis tools

  • The target logging bucket must be in the same AWS region

  • Do not set your logging bucket to be the monitored bucket

  • It will create a logging loop, and your bucket will grow exponentially - you will pay the price for your negligence or some bad screwing you up

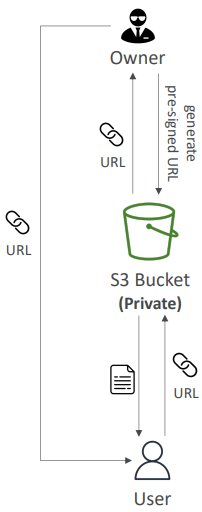

• S3 - Pre-Signed URLs

  • Generate pre-signed URLs using the S3 Console, AWS CLI or SDK

  • URL Expiration

    • S3 Console - 1 min up to 720 mins (12 hours)

    • AWS CLI - configure expiration with --expires-in parameter in seconds (default 3600 secs, max. 604800 secs ~ 168 hours)

  • Users given a pre-signed URL inherit the permissions of the user that generated the URL for GET / PUT

  • Examples:

    • Allow only logged-in users to download a premium video from your S3 bucket

    • Allow an ever-changing list of users to download files by generating URLs dynamically

    • Allow temporarily a user to upload a file to a precise location in your S3 bucket

• S3 Glacier Vault Lock

  • Adopt a WORM (Write Once Read Many) model

  • Create a Vault Lock Policy

  • Lock the policy for future edits - can no longer be changed or deleted

  • Helpful for compliance and data retention

• S3 Object Lock

  • Versioning must be enabled

  • Adopt a WORM (Write Once Read Many) model

  • Block an object version deletion for a specified amount of time

  • Retention mode - Compliance:

    • Object versions can't be overwritten or deleted by any user, including the root user

    • Objects retention modes can't be changed, and retention periods can't be shortened

  • Retention mode - Governance:

    • Most users can't overwrite or delete an object version or alter its lock settings

    • Some users have special permissions to change the retention or delete the object

  • Retention Period: protect the object for a fixed period, it can be extended

  • Legal Hold:

    • Protect the object indefinitely, independent from retention period

    • Can be freely placed and removed using the s3:PutObjectLegalHold IAM permission

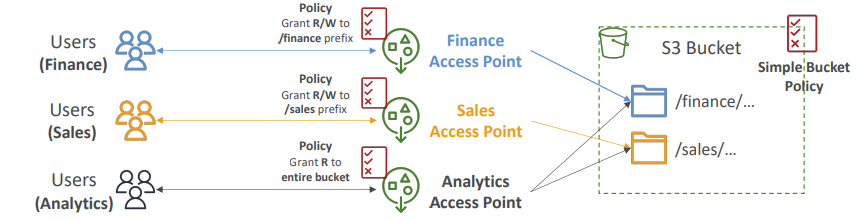

• S3 - Access Points

  • Access Points simplify security management for S3 Buckets

  • Each Access Point has

    • Own DNS name (Internet Origin or VPC Origin)

    • An access point policy similar to bucket policy to manage security at scale

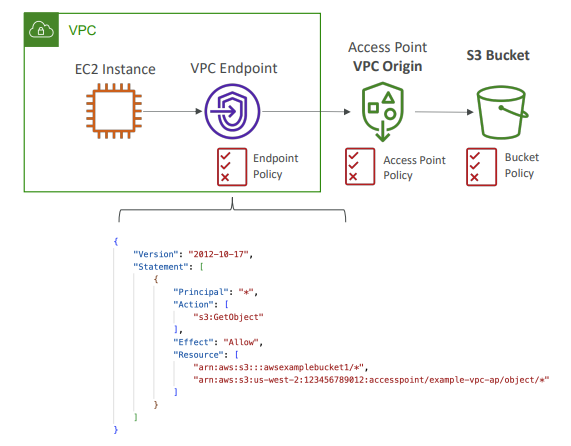

• We can define the access point to be accessible only from within the VPC

• You must create a VPC Endpoint to access the Access Point (Gateway or Interface Endpoint)

• The VPC Endpoint Policy must allow access to the target bucket and Access Point

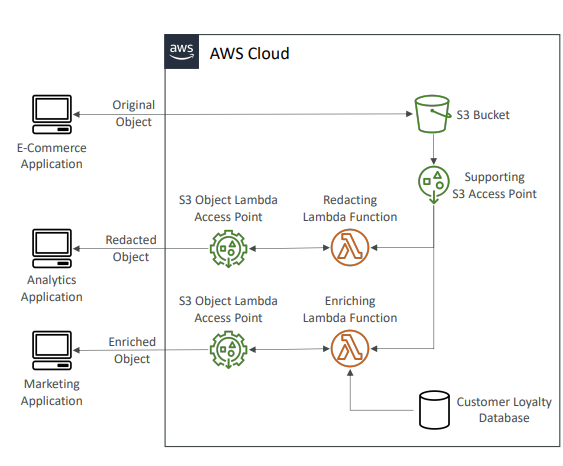

• S3 Object Lambda

  • Use AWS Lambda Functions to change the object before it is retrieved by the caller application

  • Only one S3 bucket is needed, on top of which we create S3 Access Point and S3 Object Lambda Acces

  • Use Case:

    • Redacting personally identifiable information for analytics or non- production environment

    • Converting across data formats, such as converting XML to JSON

    • Resizing and watermarking images on the fly using caller-specific details, such as the user who requested the object

Relevant Doc:

https://docs.aws.amazon.com/AmazonS3/latest/userguide/Welcome.html

Disclaimer: This is a personal blog that might come in handy when I suffer from Dementia in future
